Specs

Sensor specifications

Weather is far more variable than we often realize. Small hills or valleys can create significant temperature pockets, and even a few meters of elevation can cause notable differences in conditions. Plants grow at specific heights, while traditional weather stations are positioned higher, resulting in inaccurate hyper-local weather data. Our canopy sensors go beyond this limitation by also monitoring soil properties, such as soil temperature and moisture, which can vary dramatically both between and within individual blocks.

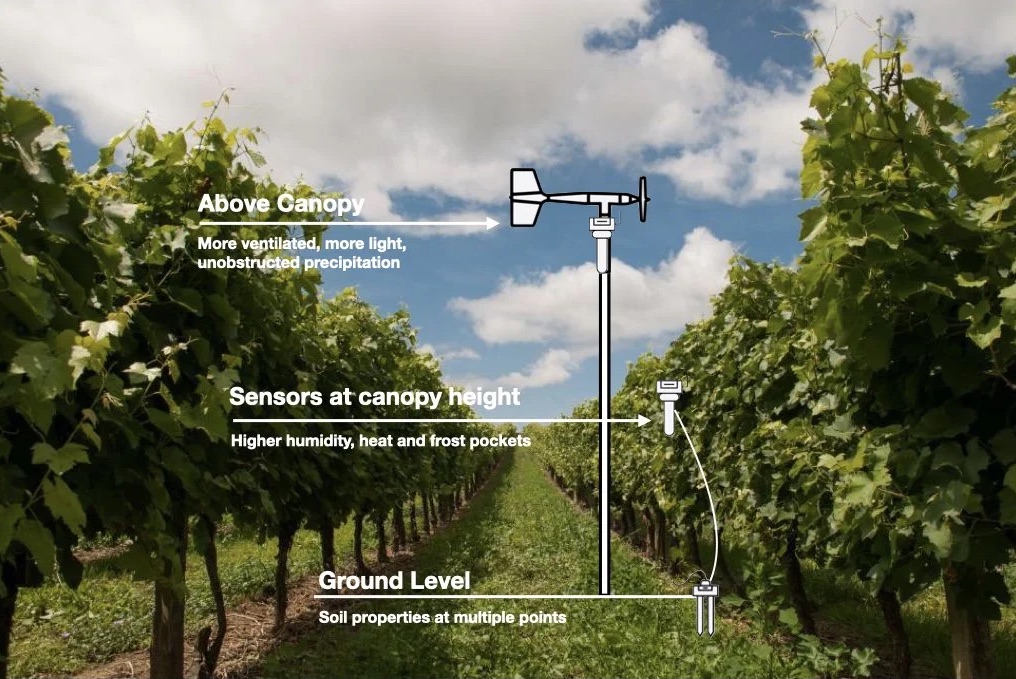

Diagram of a vineyard row showing sensor placement at three heights: above the canopy (more ventilated, more light, unobstructed precipitation), at canopy height (higher humidity, heat and frost pockets), and a soil probe at ground level (soil properties at multiple points).

Smart design

Our canopy sensors have been engineered from the ground up specifically for the needs of our farmers. These sensors are rugged, with passive or active ventilation, solar powered and discrete. We believe in sustainable technology, therefore these sensors have been designed considering a closed-loop product life. We encourage our customers to return it to us after many years of life for recycling of 90% of its parts — the remaining components are stored and reused for other applications.

Canopy sensor mounted in a vineyard row

Canopy sensor

Voltage
3.0 – 4.2 V
Battery
18650 li-ion 3.7 V, rechargeable and replaceable
Size
3.8 cm / 1.5 in diameter, length 14 cm / 5.5 in
Weight
~100 g
Temperature range
-20 °C to 60 °C ±1 °C / -4 °F to 140 °F ±2 °F
Humidity range
0% – 100% RH ±2%
Wireless communication
915/868/433 MHz license-free LoRa certified transceiver module
Solar requirements
>3 hours of direct sunlight per day. Lasts approximately 3 months with no sun
Range
Up to 5 km / 3 miles line of sight

Soil temperature and soil moisture probe

Connectivity
With canopy sensor via standard RJ45 connector
Cable length
150 – 200 cm / 5 – 7 ft
Probe length
15 cm, 30 cm / 6 in, 12 in, or custom length
Temperature sensor
DS18B20, -20 °C to 60 °C ±1 °C / -4 °F to 140 °F ±2 °F
Soil moisture probe
Capacitive (VWC @ 80 MHz), range: 1% – 60% ±5%

Gateway

Voltage
3.3 – 4.2 V
Batteries
4x 18650 li-ion 3.7 V, rechargeable and replaceable
Size
30 cm x 20 cm x 50 cm / 12 in x 8 in x 20 in
Weight
~500 g
Wireless connectivity
WiFi 2.4 GHz, LoRa (433 – 915 MHz), Cellular 3G/4G/LTE
Solar requirements
>5 hours of direct sunlight per day. Lasts approximately 3 weeks with no sun
